Zirconia Ceramic Pistons, with their ultra-high strength and toughness resembling "ceramic steel," excellent wear and corrosion resistance, and precise machining accuracy, are gradually replacing traditional metal materials and becoming core moving components in high-pressure pump systems, precision metering equipment, medical devices, and high-end engines. Whether facing extreme high pressure, highly corrosive media, or the stringent precision and hygiene standards required in pharmaceutical and medical settings, choosing high-quality zirconia ceramic pistons is a strategic investment to ensure efficient, reliable, and long-lasting operation of equipment.

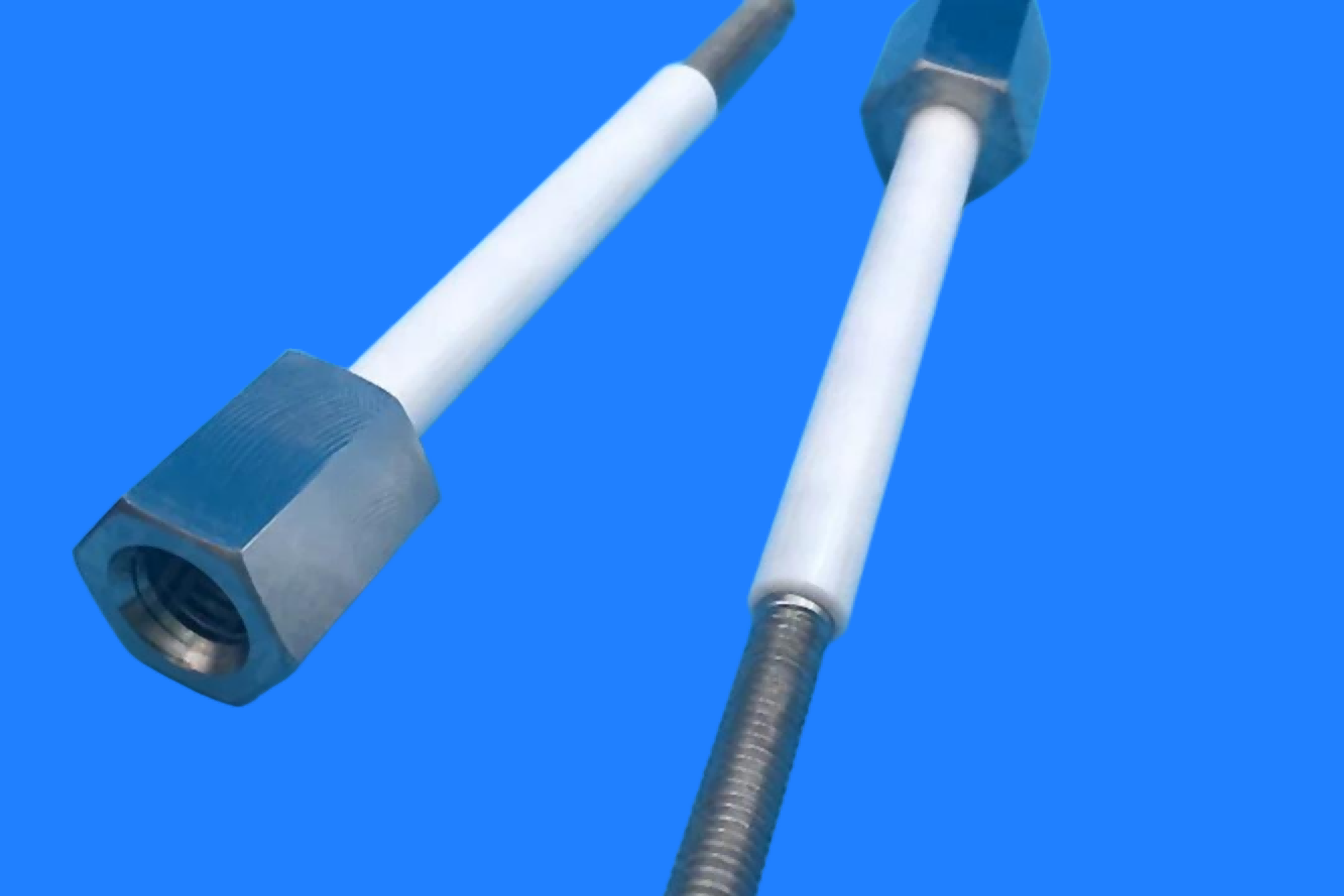

High Wear Resitance Ceramic Piston
Product Description
Zirconium Oxide Ceramic Pistons are precision ceramic moving components made from high-purity zirconia (ZrO₂) powder through advanced processes such as isostatic pressing, dry pressing, or ceramic injection molding (CIM), sintered at temperatures above 1650℃. As an upgraded alternative to traditional metal pistons, it boasts ultra-high strength and fracture toughness similar to "ceramic steel," excellent wear and corrosion resistance, and superior biocompatibility. It is widely used in high-pressure pump systems, precision measuring equipment, medical devices, waterjet cutting, engine thermal barrier coatings, and special hydraulic systems, making it an indispensable core functional component in modern high-end equipment manufacturing.
Product Core Performance Advantages
1.Ultra-high strength and fracture toughness – the accolade of "ceramic steel"
Bending strength: up to 800–1250 MPa, approximately four times that of 95% alumina ceramics, approaching the level of metallic steel
Fracture toughness: 4–10 MPa·m½, far exceeding ordinary ceramic materials, effectively resisting crack propagation
Compressive strength: 2000–5500 MPa, dense structure, excellent load-bearing capacity
High hardness: vickers hardness HV 1300–1400 (approximately HRC 88–90), Mohs hardness >9, second only to diamond
Elastic modulus: approximately 200 GPa, similar to steel, facilitating design integration with metal components
Zirconia ceramics absorb crack propagation energy through a phase transformation toughening mechanism (stress-induced tetragonal phase to monoclinic phase transformation), enabling them to maintain high hardness while possessing excellent toughness, completely overturning the traditional understanding that "ceramics are inherently brittle."
2.Superior wear and corrosion resistance
Wear life: 5–8 times longer than chrome-plated steel pistons, 2–3 times longer than alumina ceramic pistons
Surface finish: mirror polishing achieves Ra ≤ 0.05 μm, extremely low coefficient of friction
Zero porosity: dense crystal structure, near-zero water absorption, no liquid penetration
Chemical inertness: resistant to strong acids, strong alkalis, and organic solvents; stable within a pH range of 0–14
No metal ion leaching: prevents pharmaceutical contamination, meets GMP and FDA hygiene standards
3.Excellent Thermal Properties
Low thermal conductivity: only 2–3 W/(m·K), ideal for insulation and suitable for thermal barrier coatings.
Coefficient of thermal expansion: Approximately 9.5–10.5 × 10⁻⁶/K, close to that of steel, facilitating thermal matching with metals.
Thermal shock resistance: Withstands rapid heating and cooling with a ΔT ≥ 260–360℃.
Maximum operating temperature: 800–1350℃ (depending on stabilizer type).
Thermal stability: maintains structural integrity at high temperatures, without creep or softening.
4.Precision Machining and Dimensional Stability
Machining accuracy: outer/inner diameter tolerance up to ±0.001 mm, length tolerance ±0.001 mm
Surface roughness: precision grinding up to Ra 0.02–0.05 μm
Parallelism: up to 0.001 mm
Low thermal expansion: Minimal dimensional change with temperature variations, ensuring stable precision fit clearances
Non-magnetic: non-conductive and non-magnetic, suitable for electromagnetically sensitive environments
Material property parameters
| Parameter Items | Y-TZP (Yttrium-Stable) | Mg-PSZ (Magnesium-Stable) | ZTA |
| Principal Component | ZrO₂ + HfO₂ ≥ 94.5% | ZrO₂ ≥ 95% | Al₂O₃ + ZrO₂ |
| Density | 5.95–6.05 g/cm³ | 5.7 g/cm³ | 4.1–4.38 g/cm³ |
| Vickers Hardness | 12–12.5 GPa (HV 1300–1400) | 11.8 GPa | 15 GPa |
| Flexural Strength | 800–1250 MPa | 900 MPa | 700 MPa |
| Compressive Strength | 2500–5500 MPa | 1750 MPa | 2350 MPa |
| Fracture Toughness | 4–5 MPa·m½ | >7.0 MPa·m½ | 3.5 MPa·m½ |
| Elastic Modulus | 200 GPa | 200 GPa | 310 GPa |
| Coefficient of Thermal Expansion | 10 × 10⁻⁶/℃ | 10.2 × 10⁻⁶/℃ | 8 × 10⁻⁶/℃ |
| Thermal Conductivity | 2 W/(m·K) | 2.2 W/(m·K) | 20 W/(m·K) |
| Thermal Shock Resistance | ΔT ≥ 260℃ | ΔT ≥ 350℃ | ΔT ≥ 300℃ |
| Maximum Operating Temperature | 800℃ | 1000℃ | 1500℃ |
| Volume Resistivity | >10¹³ Ω·cm (25℃) | >10¹³ Ω·cm | >10¹⁴ Ω·cm |
| Dielectric Strength | 9 kV/mm | 9.4 kV/mm | 9.0 kV/mm |
| Water Absorption Rate | 0.00% | 0.00% | 0.00% |
Product Size Specifications
| Parameter | Standard Range | Customizable Range |
| OD | 1–50 mm | maximum up to 200 mm |
| ID | 0.5–30 mm | customized according to outer diameter ratio |
| Length | 10–800 mm | up to 1000 mm |
| Surface Roughness | Ra 0.05–0.1 μm | Ra ≤ 0.02 μm (ultra-precision grade) |
| Straightness | ≤ 0.01 mm/100mm | ≤ 0.005 mm/100mm |
| Roundness/Cylindricity | ≤ 0.005 mm | ≤ 0.002 mm |
Main Application Areas
1.High-Pressure Pumps and Hydraulic Systems
Zirconium oxide ceramic pistons are the core moving components of high-pressure plunger pumps, high-pressure washer pumps, and waterjet cutting pumps.
Waterjet Cutting: working pressures reach 400–600 MPa. Zirconia pistons withstand ultra-high pressure and abrasive erosion, resulting in a lifespan far exceeding that of metal pistons.
High-Pressure Washers: high pressure resistance and wear resistance reduce seal wear and lower maintenance costs.
Oilfield Mud Pumps: TSC zirconia cylinder liners, compared to alumina cylinder liners, offer better impact strength, higher hardness, and a finer surface finish (3–4 times better smoothness), significantly extending piston seal life and reducing cooling load.
Hydraulic Servo Systems: precision motion control, zero leakage, and high response.
Compatible brands: FLOW, KMT, OMAX, Yongda, Boao, Huazhen and other mainstream waterjet cutting equipment
2.Precision Metering and Pharmaceutical Filling
Zirconium oxide ceramic piston pumps are the preferred solution for pharmaceutical filling lines, cosmetic dispensing, and precision metering in laboratories.Filling accuracy: ≤ ±0.5%, meeting the high-precision filling requirements of injections, oral liquids, etc.Hygiene standards: does not absorb medication or react chemically with drugs, complying with GMP/FDA requirements.Cleaning-in-place (CIP)/sterilization-in-place (SIP): withstands repeated high-temperature and high-pressure sterilization.Zero residue: mirror-polished surface minimizes drug residue and avoids cross-contamination.Long lifespan: 5–8 times the lifespan of chrome-plated steel pumps, significantly reducing replacement frequency.
Filling of injectable and lyophilized powder injections
Metering of oral and topical liquid preparations
Aseptic filling of vaccines and biological agents
Precision delivery of highly corrosive chemical reagents
Compatible equipment: iMedical Devices and Surgical Robots
3.Zirconium oxide Ceramic Pistons play a crucial role in medical devices and surgical instruments.
Surgical Robots: provide high-precision, high-stability motion control, ensuring surgical accuracy and reliability.
Dental Equipment: used in high-speed dental handpieces (dental drills), maintaining stability under high speeds and heavy loads.
Surgical Instruments: transmission components used for precision cutting and clamping tools.
Biocompatibility: non-toxic, non-allergenic, and meets ISO 10993 biocompatibility standards.
Sterilization Resistance: withstands high-temperature, high-pressure steam sterilization, ethylene oxide sterilization, and irradiation sterilization.nternationally renowned filling equipment such as BOSCH, B+S, IMA, GROENINGER, and INOVA.
4.Engine Thermal Barrier Coating (TBC)
Zirconium oxide (especially Y-PSZ) is an ideal material for thermal barrier coatings on internal combustion engine pistons.Insulation effect: the coating can reduce piston crown temperature by 100°C, reducing heat loss.Efficiency improvement: engine thermal efficiency increases by 5–7.4%, fuel consumption decreases by 11%.Power increase: output power increases by 10%.Emission reduction: harmful particulate emissions decrease by 20–50%, engine noise decreases by 3 dB.Life extension: life of critical components (such as valves) is extended by 300%.Coating thickness: typically 100–500 μm, optimized according to operating conditions.
Application Areas: Piston crown, cylinder head, valve seat, cylinder liner inner wall.
5.Chemical and Specialty Fluid Transportation
Corrosive Media Pumps: for transporting sulfuric acid, hydrochloric acid, strong alkalis, organic solvents, etc.
High-Purity Chemical Transportation: ultra-pure chemicals for the semiconductor industry, electronic pastes
Food-Grade Applications: hygienic transportation of dairy products, beverages, and condiments
Metering and Control Valves: precision flow control, leak-free and jam-free
Standard Product Series
| Product Series | Stabilizer Type | Main Applications | Core Features |
| Precision Grade | Y₂O₃（3 mol%） | metering pumps, medical pistons | highest strength, mirror polished |
| Abrasion-resistant Grade | MgO | high-pressure pump, water jet piston | optimal toughness, impact resistance |
| High Temperature Level | CeO₂ | thermal barrier coating, high-temperature piston | maximum temperature resistance, thermal stability |
| Composite | ZrO₂ + Al₂O₃ | wear-resistant and thermally conductive scenarios | high hardness, excellent cost performance |
| Black Grade | Y₂O₃ + colorant | equipment with high appearance requirements | high toughness, beautiful and durable |
| Blue Level | Y₂O₃ + transition metal | distinguishing features and decorative applications | unique appearance, stable performance |
Customized Services
Usage and Maintenance Recommendations
1.Installation Precautions
Clean environment: before installation, ensure the piston and cylinder liner are clean and free of impurities to avoid scratching the surface with hard particles.
Lubrication requirements: select a suitable lubricant (e.g., water-based, oil-based, or dry friction) according to the operating conditions.
Alignment and calibration: ensure the piston and cylinder liner are coaxial to avoid uneven wear.
Preload control: the preload of the seals should be moderate; excessive preload increases friction, while insufficient preload leads to leakage.
Temperature adaptation: temperature cycling adaptation is recommended before first use to avoid thermal shock.
2.Routine Maintenance
Regular inspection: monitor piston surface wear and seal condition.
Cleaning and maintenance: regularly clean the piston surface to remove deposits and crystals.
Lubrication management: maintain proper lubrication to avoid abnormal wear caused by dry friction.
Storage conditions: store in a dry, dust-free environment when not in use, avoiding impact.
Common Problem Handling
| Problem | Possible reasons | Solution |
| Piston Surface Scratches | hard particles enter | enhance filtration and improve media cleanliness |
| Seal Leakage | seal aging/piston wear | replace the seals and check the piston dimensions. |
| Abnormal Noise | insufficient lubrication/poor alignment | improve lubrication and recalibrate the alignment. |
| Piston Breakage | impact overload/thermal stress | selecting materials with higher toughness and optimizing working conditions |
| Corrosion Spots | corrosiveness of the medium exceeded expectations. | identify the composition of the medium and select more corrosion-resistant materials. |
Our workshop
|
CNC Workshop |
Testing Room |
|
Surface grinding Workshop |
Sintering Workshop |
|
Circular Grinding Workshop |
Injection molding Machine Workshop |
Why choose us?
1.Customized R&D, rather than standard product adaptation
2.Deep control of materials science：Material Selection Based on Needs，Microstructure Optimization，Batch Consistency
3.Precision machining capability：Flatness can reach 0.001mm, parallelism 0.002mm, and roughness Ra 0.1μm.
FAQ
Q1: What products does your company offer?
We specialize in high-performance ceramics such as alumina and silicon nitride, providing insulators, structural components, wear-resistant parts, and customized solutions.
Q2: Can you customize non-standard parts?
Yes. We support processing based on provided drawings and collaborative technical development, offering a full-process service from design to mass production.
Q3: What about accuracy and delivery time?
Standard tolerance ±0.05mm, precision grade ±0.01mm; samples 7-15 days, bulk orders 20-30 days.
Q4: Main application areas?
Power, electronics, machinery, chemical, and aerospace industries.
Q5: Quality assurance measures?
Full-process quality inspection, providing material reports and performance test data, supporting third-party certification and testing.
Q6: Do you provide technical support?
We provide professional support such as material selection consultation, design optimization, and failure analysis.
