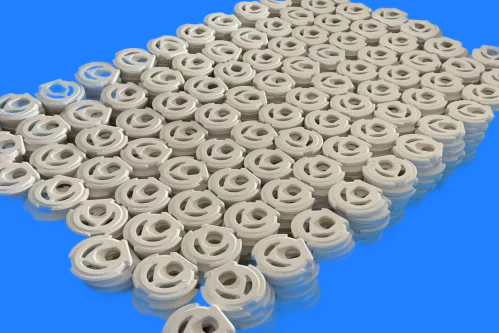

Environmental Protection and Safety Zirconia Ceramic Tap Washers

Environmental Protection and Safety Al₂O₃ Ceramic Tap Washers

Product Description

Zirconia Ceramic Tap Washers use high-purity alumina ceramic as the base material, achieving micron-level flatness and low roughness through precision machining. They also boast advantages such as superior wear resistance, zero leakage, corrosion resistance, and high-temperature resistance. Compared to traditional rubber or plastic washers, their lifespan is more than 10 times longer, with no aging, deformation, or leakage issues even after long-term use. Suitable for various scenarios including household bathrooms, smart toilets, and industrial fluid control, they are a key upgrade component for modern water-saving bathroom fixtures and precision valves, and a core accessory for enhancing product quality and user experience.

Product Specifications

1. Outer Diameter: Commonly φ10mm~φ30mm (customizable)
2. Thickness: 1.0mm~3.0mm (customizable according to valve core model)
3. Orifice Diameter: φ3mm~φ10mm (adapts to different flow requirements)
4. Flatness: ≤0.003mm (micron-level precision, ensuring sealing performance)
5. Surface Roughness: Ra≤0.2μm
6. Hardness: HV 1000~1500 (corresponding to Mohs hardness 8.5~9)

Precision Machining Process

High-quality ceramic gaskets require diamond grinding to achieve a mirror-like finish (surface roughness Ra < 0.05μm, flatness < 0.1μm). Combined with a stainless steel spring, this forms a sealing system that ensures a tight fit between the two ceramic gaskets, achieving a leak-proof seal.

Working Principle

The ceramic washer is designed with a features unique double-disc structure:

1. Structural Composition: a pair of precisely matched grooved ceramic discs, one fixed and the other rotatable 90° (i.e., "quarter turn").
2. Open State: the grooves on the two discs align, allowing water to flow smoothly.
3. Closed State: the rotatable disc rotates 90°, the grooves misalign, and water flow is completely blocked.

This design allows the faucet to be turned on and off without multiple rotations, making it especially suitable for lever-type faucets and hot and cold water mixing faucets.

Product  Advantages

1.Ultra-long service life

   (1)Wear resistance: Ceramic's hardness is second only to diamond, and its wear resistance is more than 10 times that of metal valve cores. Its service life can reach over 500,000 opening and closing cycles, and under normal use, it can last for more than 10 years.

   (2)Water erosion resistance: Ceramic materials have strong chemical stability, effectively resisting erosion caused by long-term water flow.

2.Superior Sealing Performance

   (1)The precision-machined ceramic surface with a mirror-like finish ensures a zero-leakage seal between the moving and stationary valve plates.

   (2)The low coefficient of friction makes switching operation smoother and less strenuous, making it especially suitable for people with arthritis or mobility impairments.

3.Wide Adaptability

   (1)High Temperature Resistance: Maintains mechanical integrity at high temperatures without softening or deforming.

   (2)Corrosion Resistance: Exhibits excellent resistance to strong acids, strong alkalis, and various chemical media, suitable for harsh working conditions in chemical and petroleum industries.

4.Environmental Protection and Safety

   (1)High-quality ceramic gaskets are free of lead and other harmful substances, and are certified by NSF, CE, and ISO, ensuring water safety.

   (2)The low-friction design reduces particulate contamination caused by mechanical wear.

   (3)Chemical Inertness: Does not readily react with other substances; exhibits strong resistance to degradation and oxidation.

Comparison with Traditional Washers

Applications

The applications of Ceramic Valve extend far beyond the realm of household bathroom fixtures:

Household Bathroom Fixtures: Kitchen faucets, basin faucets, shower heads, bathtub faucets, etc.

Commercial Use: High-frequency usage scenarios such as hotels, hospitals, and schools.

Industrial Use: High-pressure and high-temperature environments such as chemical pipelines, oil and gas transportation, power equipment, and metallurgical systems.

Special Environments: Marine engineering, acid, alkali, and salt media transportation, and high-temperature steam systems.

Maintenance Tips

Although ceramic washers are extremely durable, they may still need to be replaced after prolonged use due to scale buildup or mechanical damage.When replacing them, turn off the main water valve and carefully remove them using pipe wrenches or a wrench to avoid damaging the faucet body.Regularly clean the spout filter to prevent impurities from scratching the ceramic surface.

Our workshop

Why choose us?

1.Customized R&D, rather than standard product adaptation

2.Deep control of materials science：Material Selection Based on Needs，Microstructure Optimization，Batch Consistency

3.Precision machining capability：Flatness can reach 0.001mm, parallelism 0.002mm, and roughness Ra 0.1μm.

FAQ

Q1: What products does your company offer?

We specialize in high-performance ceramics such as alumina and silicon nitride, providing insulators, structural components, wear-resistant parts, and customized solutions.

Q2: Can you customize non-standard parts?

Yes. We support processing based on provided drawings and collaborative technical development, offering a full-process service from design to mass production.

Q3: What about accuracy and delivery time?

Standard tolerance ±0.05mm, precision grade ±0.01mm; samples 7-15 days, bulk orders 20-30 days.

Q4: Main application areas?

Power, electronics, machinery, chemical, and aerospace industries.

Q5: Quality assurance measures?

Full-process quality inspection, providing material reports and performance test data, supporting third-party certification and testing.

Q6: Do you provide technical support?

We provide professional support such as material selection consultation, design optimization, and failure analysis.
