Alumina Ceramic Sealer, with their superior comprehensive performance and mature manufacturing process, have become an indispensable key component in modern high-reliability sealing technology. As the requirements for sealing reliability continue to increase in electronic devices, new energy equipment, and high-end manufacturing, alumina ceramic sealers will play a vital role in a wider range of fields, providing stable and reliable material solutions for complex engineering systems.

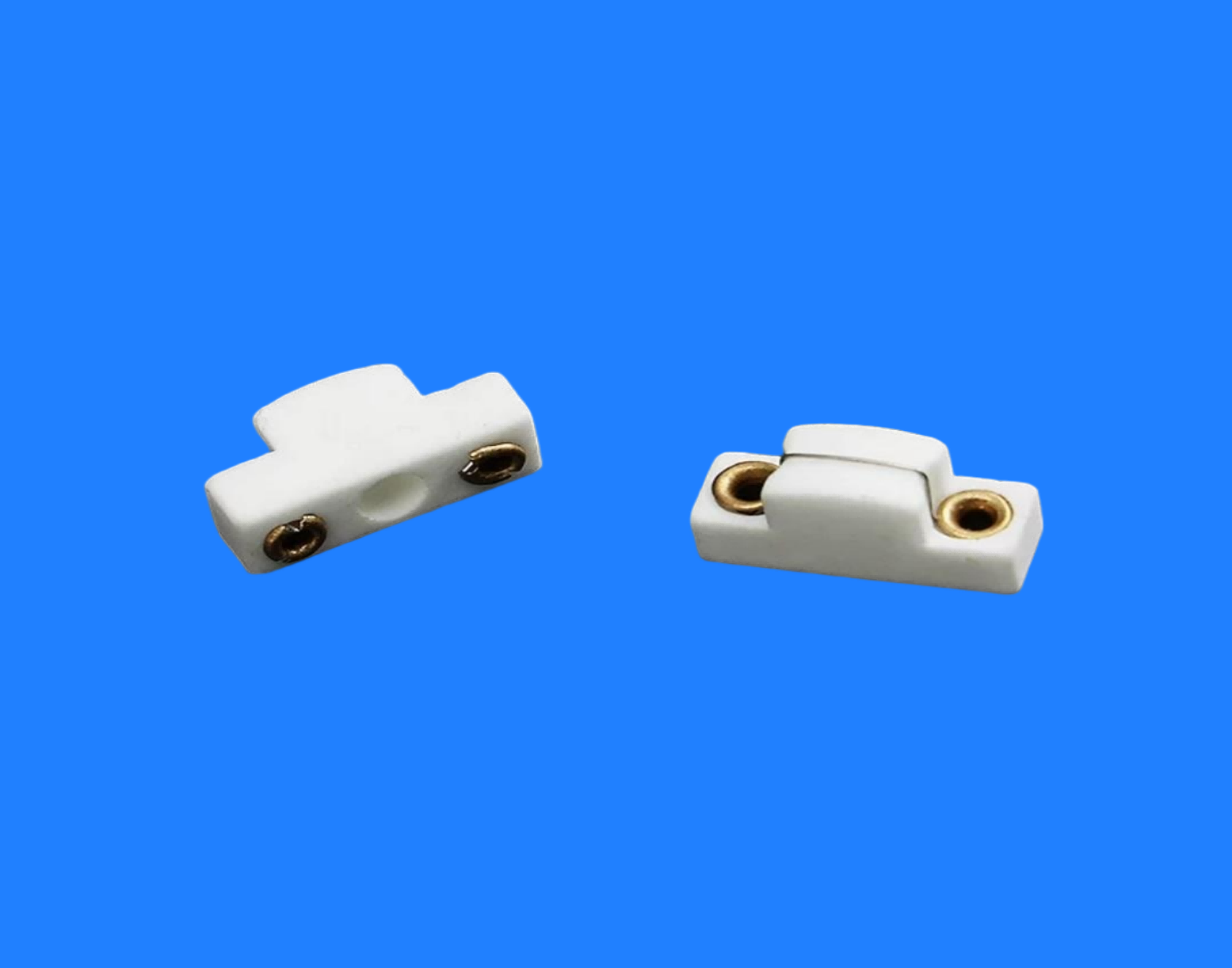

Alumina Ceramic Sealer for Heat Treatment Equipment
Product Description
Ceramic Sealers are high-performance ceramic sealing elements with alumina (Al₂O₃) as the main component, widely used in electronic packaging, vacuum equipment, high-temperature industries, and chemical industries. Due to their excellent insulation, high-temperature resistance, and chemical stability, alumina ceramic sealers have become the mainstream choice for high-reliability sealing structures. Depending on the alumina content, they can be divided into different grades such as 95% alumina and 99% alumina. 95% alumina ceramic sealers achieve a good balance between mechanical strength and cost, while 99% high-purity alumina is suitable for more demanding precision applications.
Product Specifications (Customizable)
Product Advantages
Compared to traditional metal or polymer sealing materials, alumina ceramic sealers offer the following significant advantages:
1.Balanced overall performance: combining mechanical strength, insulation, heat resistance, and chemical stability, a single material can meet multiple needs.
2.Temperature expansion matching: matching the coefficient of thermal expansion with commonly used metal sealing materials such as Kovar and stainless steel, ensuring reliable sealing.
3.High process maturity: a well-established metallization and brazing process system enables stable mass production.
4.Outstanding cost-effectiveness: compared to advanced ceramics such as aluminum nitride and silicon nitride, alumina has lower raw material costs and a mature sintering process, resulting in a significant cost advantage.
5.Long lifespan and low maintenance: high hardness, wear resistance, and corrosion resistance significantly reduce equipment downtime and maintenance costs.
Metallization and Sealing Technology
Alumina ceramics are inherently difficult to weld directly to metals; therefore, metallization is typically used to achieve reliable ceramic-metal sealing:
Product Applications
| Application Areas | Specific Scenarios | Key Performance Utilization |
| Electronic Packaging | integrated circuit (IC) packaging, sensor packaging, optoelectronic device packaging | insulation, airtightness, thermal matching |
| Vacuum Equipment | vacuum electronic devices, vacuum feedthrough components, and sealed connectors | high airtightness, high pressure resistance, and low outgassing rate |
| Power Industry | high-voltage electrical equipment, transformer insulation and sealing, generator sets | high insulation strength, arc resistance, and thermal stability |
| Aerospace | engine sealing, gas turbine insulation, avionics | high temperature resistance, thermal shock resistance, lightweight |
| Chemical Industry | high-temperature reactor sealing, pipeline sealing, and isolation from corrosive media. | corrosion resistant, chemically inert, long service life |
| New Energy | SOFC power generation systems and photovoltaic equipment | high temperature stability, electrical insulation, and thermal shock resistance |
| Medical Devices | implantable medical devices, biosensor packaging | biocompatibility, high airtightness, reliability |
Our workshop
|
CNC Workshop |
Testing Room |
|
Surface grinding Workshop |
Sintering Workshop |
|
Circular Grinding Workshop |
Injection molding Machine Workshop |
Why choose us?
1.Customized R&D, rather than standard product adaptation
2.Deep control of materials science：Material Selection Based on Needs，Microstructure Optimization，Batch Consistency
3.Precision machining capability：Flatness can reach 0.001mm, parallelism 0.002mm, and roughness Ra 0.1μm.
FAQ
Q1: What products does your company offer?
We specialize in high-performance ceramics such as alumina and silicon nitride, providing insulators, structural components, wear-resistant parts, and customized solutions.
Q2: Can you customize non-standard parts?
Yes. We support processing based on provided drawings and collaborative technical development, offering a full-process service from design to mass production.
Q3: What about accuracy and delivery time?
Standard tolerance ±0.05mm, precision grade ±0.01mm; samples 7-15 days, bulk orders 20-30 days.
Q4: Main application areas?
Power, electronics, machinery, chemical, and aerospace industries.
Q5: Quality assurance measures?
Full-process quality inspection, providing material reports and performance test data, supporting third-party certification and testing.
Q6: Do you provide technical support?
We provide professional support such as material selection consultation, design optimization, and failure analysis.
