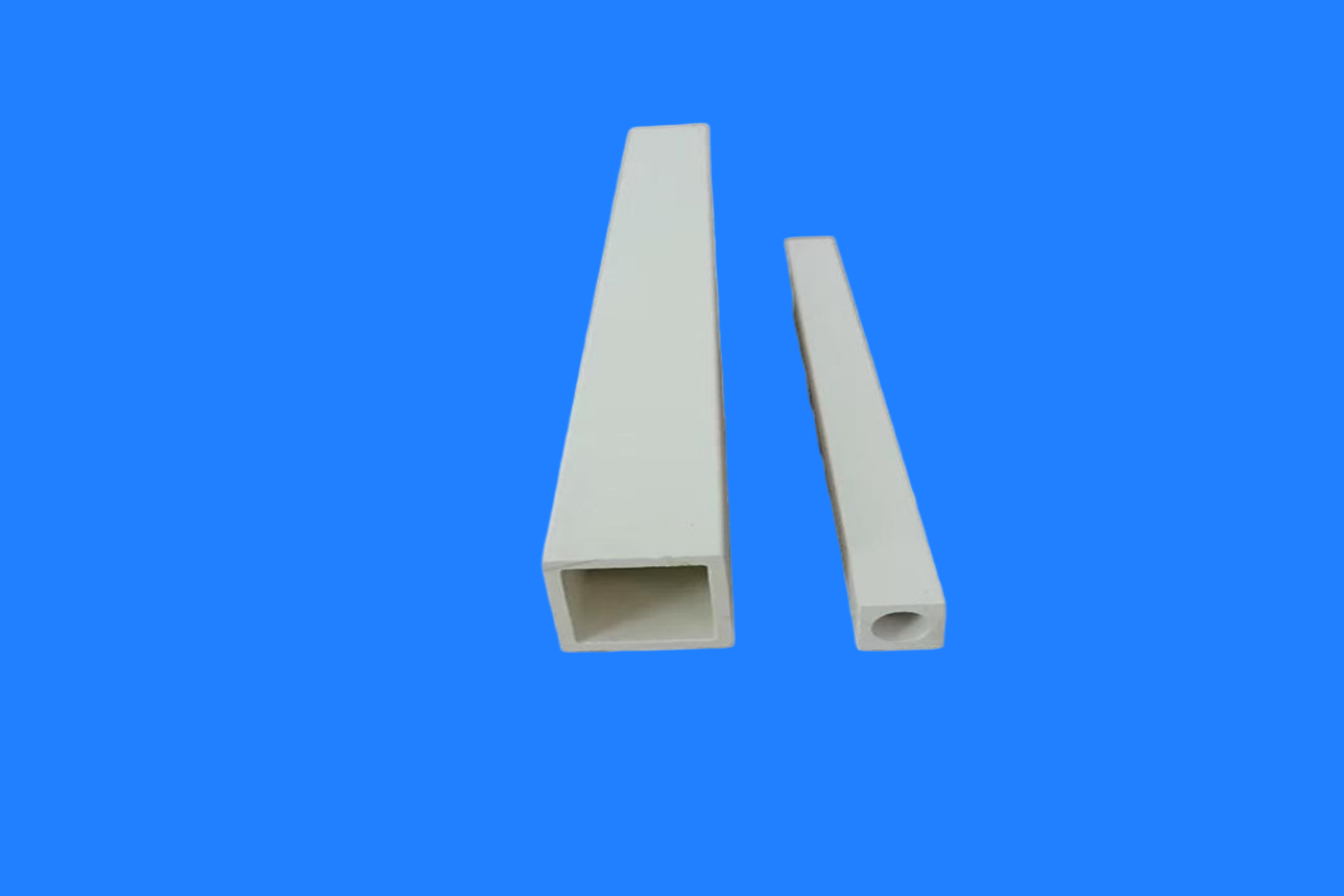

Single-Bore Square 99% Al₂O₃ Ceramic Tube Manufacturer for High-Temperature Insulation

Single-Bore Square 99% Al₂O₃ Ceramic Tube Manufacturer for High-Temperature Insulation

Product Description

These 99% high-purity Ceramic Square Tube is specialized ceramic components manufactured from high-purity alumina (Al₂O₃ ≥ 99%) through isostatic pressing, high-temperature sintering, and precision machining. Featuring a square or rectangular cross-section, they combine the outstanding physicochemical properties of alumina ceramics with the unique geometric advantages of a square tube structure, making them ideal for demanding applications involving high temperatures, corrosion, electrical insulation, and precision structural support. Compared to circular ceramic tubes, the square tube design offers irreplaceable advantages in equipment integration, space utilization, surface mating, and side-by-side arraying, serving as a core structural component in electric furnaces, thermocouples, electronic devices, and chemical processing equipment.

Key Material Properties

99% High-Purity Alumina Ceramic (Al₂O₃ ≥ 99%)

Purity Note: 99% alumina strikes the optimal balance between performance and cost; it offers the excellent properties of high-purity ceramics while being more cost-effective than ultra-high-purity products (99.5% or 99.7% and above), making it the mainstream choice for industrial mass-market applications.

Product Structure and Process Characteristics

1.Precision Forming Process

   cold isostatic pressing (CIP): utilizes cold isostatic pressing technology to ensure uniform green body density; the sintered product is free from delamination and cracks.

   high-temperature sintering: sintered in high-temperature tunnel or shuttle kilns at 1700°C–1800°C, resulting in fully developed grains and high density.

   precision machining: diamond tools are used for the precision machining of inner and outer surfaces as well as end faces; dimensional accuracy reaches ±0.05 mm, and surface roughness is Ra ≤ 0.8 μm.

2.Advantages of Square Tube Structures

   high space utilization: square cross-sections facilitate side-by-side arrangement, saving installation space.

   stable positioning: flat surfaces allow for precise mating with equipment frames, flanges, and brackets, resisting rotation and sliding.

   uniform thermal field: In electric furnaces and heat treatment equipment, the arrangement of square tubes enables a more uniform temperature distribution.

   ease of integration: Convenient for use with square thermocouples, square heating elements, square insulating cores, and similar components.

Product Core Advantages

1. Exceptional High-Temperature Stability

    99% alumina square tubes operate stably over long periods at temperatures up to 1600°C without softening, creeping, or volatilizing, making them ideal protective sheaths for precious metal thermocouples and high-temperature heating elements.

2. Excellent Electrical Insulation Properties

    they exhibit a volume resistivity exceeding 10¹⁴ Ω·cm at room temperature and maintain good insulation performance at high temperatures, making them widely applicable in electronic vacuum devices, high-voltage insulating supports, and semiconductor equipment.

3. Outstanding Corrosion Resistance

    they withstand most acidic and alkaline media as well as molten metal corrosion (with the exception of hydrofluoric acid, hot concentrated phosphoric acid, and molten strong alkalis), significantly outperforming metal tubing in corrosive chemical and metallurgical environments.

4. High Mechanical Strength and Wear Resistance

    with a flexural strength of ≥300 MPa and hardness approaching that of diamond, they withstand mechanical loads and particle erosion, making them suitable for structural support and material transport in high-wear applications.

5. High Dimensional Precision and Consistency

    precision manufacturing ensures high consistency in external dimensions, straightness, and perpendicularity across batches, meeting the requirements for automated assembly and high-precision equipment integration.

6. Good Thermal Shock Resistance

    careful control of grain size and microstructure imparts excellent thermal shock resistance, allowing the product to withstand rapid heating and cooling cycles while minimizing the risk of cracking.

Typical Applications

1.Thermocouple Protection

   protection tubes for noble metal thermocouples (Types S, B, and R)

   insulating and supporting square tubes for high-temperature furnace temperature measurement systems

   furnace temperature monitoring components for the iron and steel, glass, and ceramic industries

2.Electric Furnaces and Heat Treatment

   furnace tubes and chamber structural components for box, tube, and vacuum furnaces

   insulating support tubes for high-temperature heating elements (silicon carbide rods, molybdenum disilicide rods)

   lining components for sintering furnaces used in powder metallurgy and magnetic materials processing

3.Electronics and Semiconductors

   insulating support structures for electronic vacuum devices

   quartz tube replacements and support components for semiconductor diffusion furnaces and CVD equipment

   high-temperature insulating components for LED epitaxy and chip manufacturing

4.Chemical Industry and Metallurgy

   pipelines for conveying high-temperature, corrosive gases

   flow-directing and protective tubes for molten metals (liquid aluminum, copper, and zinc)

   high-temperature insulating liners for chemical reactors

5.New Energy and Special Equipment

   square tubes for lithium-ion battery cathode material sintering furnaces

   high-temperature insulating structural components for hydrogen energy equipment

   high-temperature insulating support components for the aerospace sector

Technical Specifications

Custom Services: We offer customization based on customer drawings, including special cross-sectional profiles (rectangular, slotted, perforated, stepped, etc.), end-face machining (threading, chamfering, flanging), and post-processing treatments such as polishing and glazing of inner and outer surfaces.

Recommendations for Model Selection and Usage

1.Selection Criteria

    Operating temperature: determine the long-term operating temperature and the range of temperature fluctuations to select the appropriate wall thickness and structural design.

    Media environment: identify the chemical properties of the contacting media; avoid direct contact with hydrofluoric acid, hot concentrated phosphoric acid, and molten strong alkalis.

    Mechanical loads: assess the pressure, bending forces, and vibration conditions; increase wall thickness or utilize reinforced structures if necessary.

    Dimensional compatibility: provide precise installation space dimensions and mating tolerance requirements to ensure smooth assembly.

2.Precautions for Installation and Use

    handle with care: ceramic is a brittle material; avoid dropping, impacts, and uneven loading.

    heat evenly: when using for the first time or under rapid heating conditions, increase the temperature gradually to prevent cracking caused by concentrated thermal stress.

    avoid hard contact: when mating with metal components, use flexible gaskets or cushioning structures to prevent excessive localized stress.

    inspect regularly: after prolonged use, check the tube walls for wear and cracks, and replace promptly to ensure safety.

Our workshop

Why choose us?

1.Customized R&D, rather than standard product adaptation

2.Deep control of materials science：Material Selection Based on Needs，Microstructure Optimization，Batch Consistency

3.Precision machining capability：Flatness can reach 0.001mm, parallelism 0.002mm, and roughness Ra 0.1μm.

FAQ

Q1: What products does your company offer?

We specialize in high-performance ceramics such as alumina and silicon nitride, providing insulators, structural components, wear-resistant parts, and customized solutions.

Q2: Can you customize non-standard parts?

Yes. We support processing based on provided drawings and collaborative technical development, offering a full-process service from design to mass production.

Q3: What about accuracy and delivery time?

Standard tolerance ±0.05mm, precision grade ±0.01mm; samples 7-15 days, bulk orders 20-30 days.

Q4: Main application areas?

Power, electronics, machinery, chemical, and aerospace industries.

Q5: Quality assurance measures?

Full-process quality inspection, providing material reports and performance test data, supporting third-party certification and testing.

Q6: Do you provide technical support?

We provide professional support such as material selection consultation, design optimization, and failure analysis.
