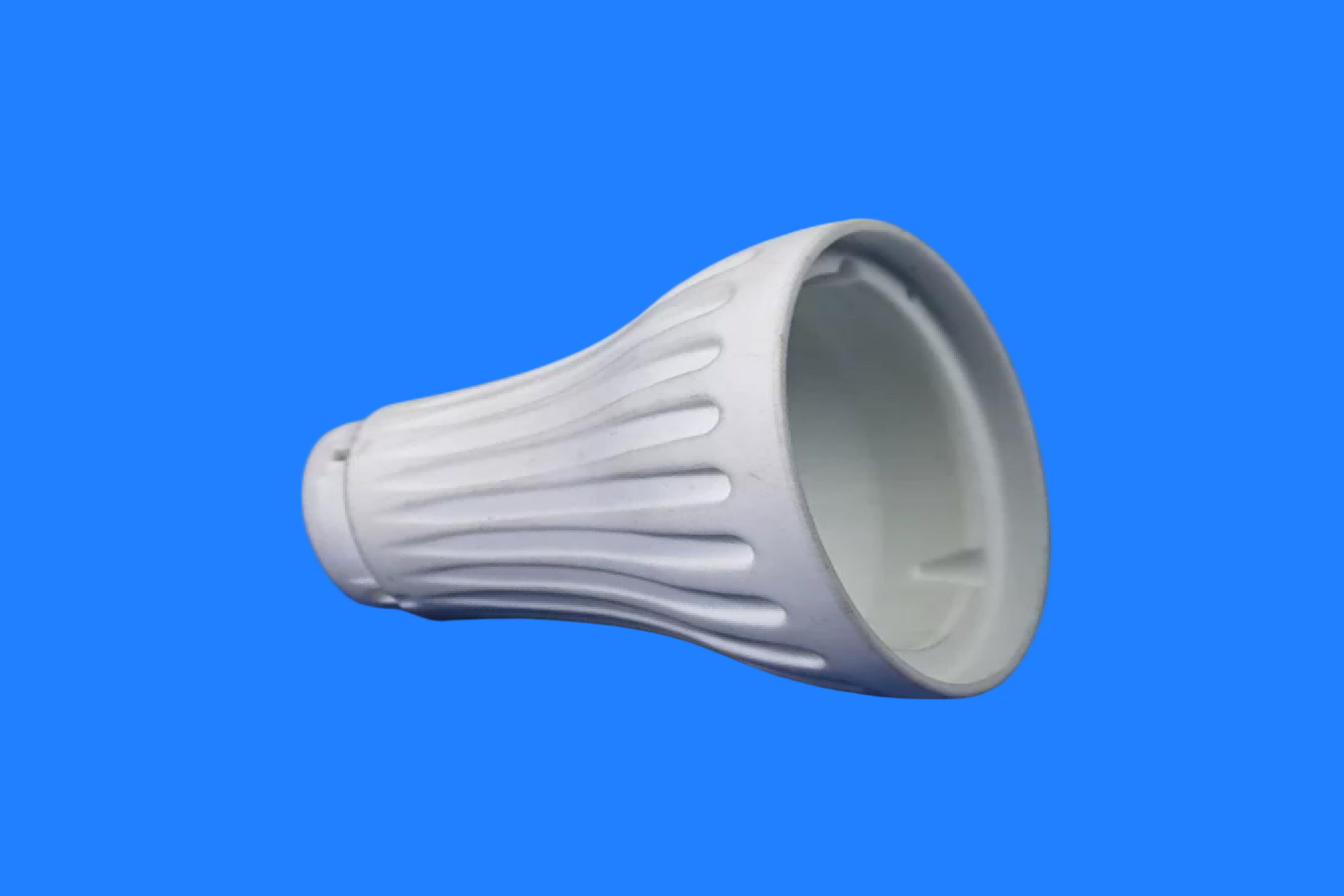

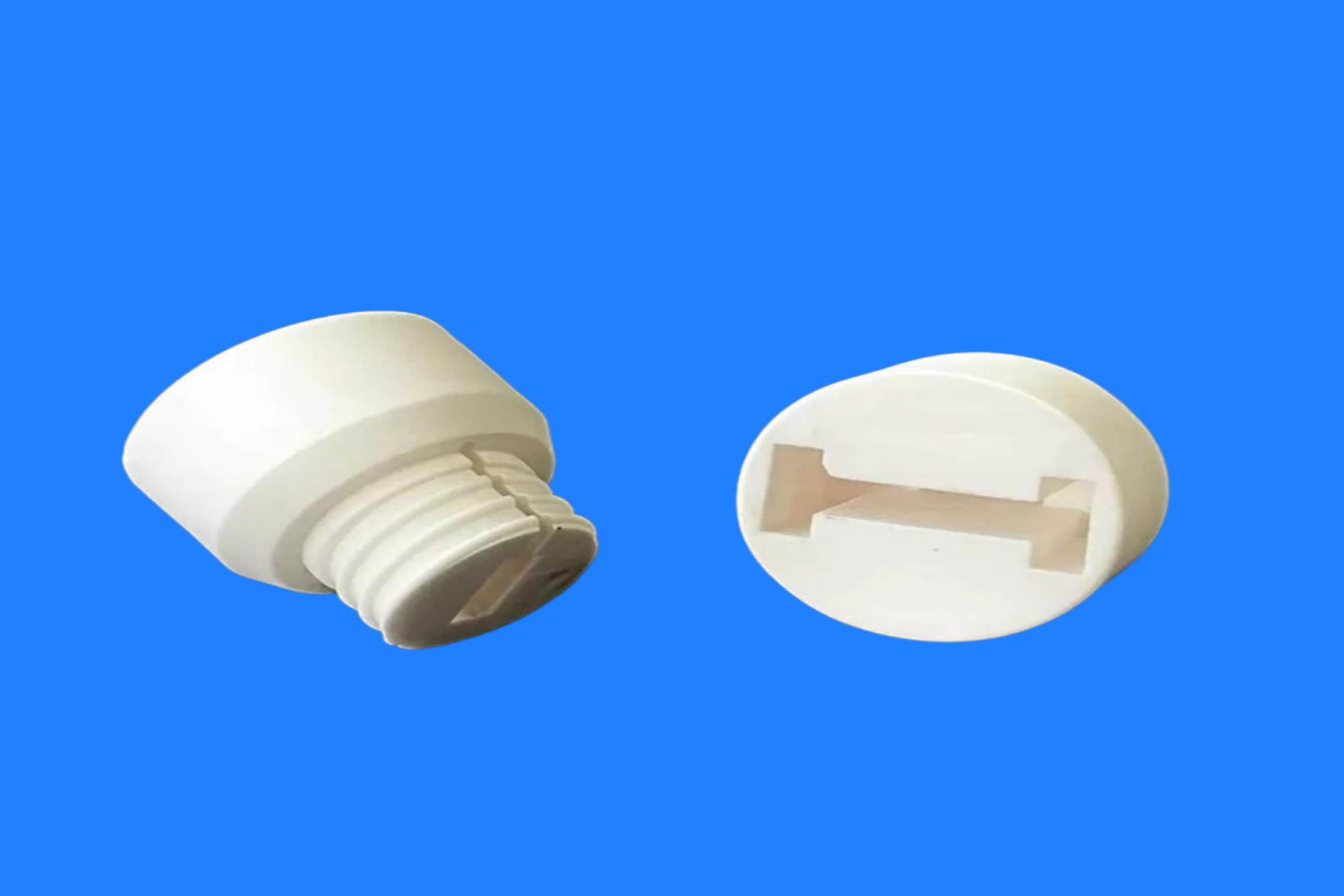

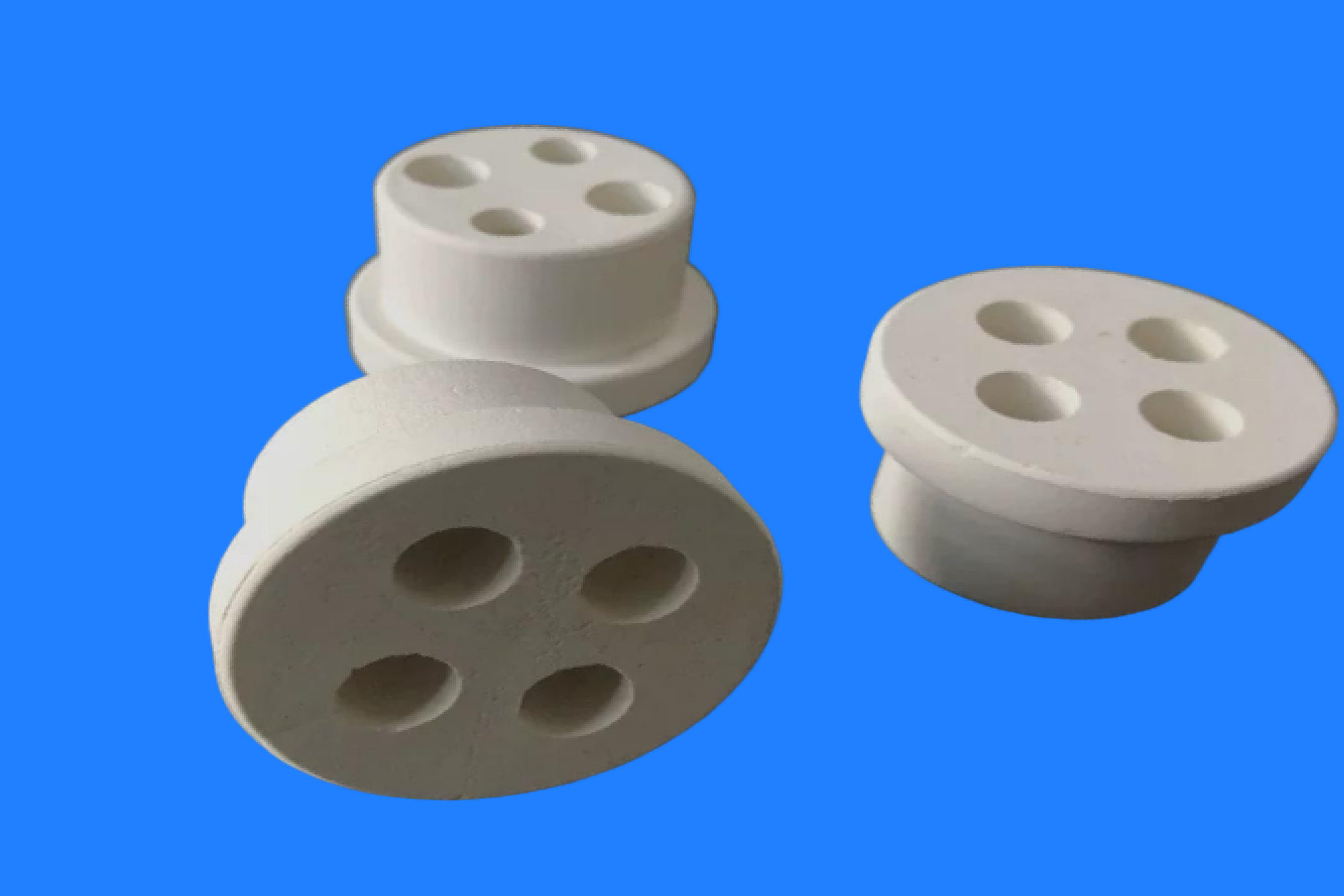

Super High-temperature Resistance Alumina Ceramic Lamp Socket Holder

Super High-temperature Resistance Alumina Ceramic Lamp Socket Holder

Product Description

AL2O3 Ceramic Lamp Holders are precision ceramic lighting accessories made from high-purity alumina (Al₂O₃) powder through isostatic pressing or dry pressing processes, and sintered at temperatures above 1600℃. They are suitable for a wide range of scenarios, from household LED lights to industrial explosion-proof lights. Through customized interfaces and sizes, they can meet the installation and usage requirements of different lamps. They combine safety, stability, and long lifespan, making them a key insulating component for high-reliability lighting fixtures in the lighting industry. Especially in harsh conditions such as high temperature, humidity, and corrosion, choosing high-quality alumina ceramic lamp holders is a crucial decision to ensure the safe, stable, and efficient operation of lighting systems.

Product Performance Advantages

1. Superior High Temperature Resistance

    Long-term operating temperature: up to 200℃ or higher; short-term temperature resistance up to 1200℃

    Thermal stability: low coefficient of thermal expansion (approximately 7–8 ppm/°C), resistant to deformation or cracking in alternating hot and cold environments

   Thermal shock resistance: withstands instantaneous temperature changes exceeding 1000℃, suitable for extreme working conditions

2.Excellent electrical insulation performance:

   Insulation resistance: surface resistance up to 10⁹Ω or higher, volume resistivity >10¹⁴ Ω·cm

   Dielectric strength: remains stable under high voltage conditions without breakdown, effectively preventing arc discharge and short circuit risks

   Frequency stability: maintains stable electrical performance over a wide frequency range, suitable for high-frequency LED driver circuits

3. High-efficiency thermal conductivity and heat dissipation

    Thermal conductivity: up to 25–30 W/m·K, effectively conducting heat generated by the LED chip.

    Heat dissipation efficiency: compared to plastic lamp holders, it significantly reduces LED junction temperature and extends the lifespan of the light source.

   Synergistic thermal management: works in conjunction with metal heat sinks to form a highly efficient thermal path.

4.Superior Mechanical Properties

   Compressive strength: dense structure, high compressive strength, not easily broken

   Vibration resistance: suitable for industrial equipment and transportation lighting systems subject to frequent vibrations

   Dimensional accuracy: machining accuracy up to ±0.01mm ensures a tight fit with the bulb

5.Chemical Stability and Durability

   Corrosion resistance: remains stable in corrosive environments such as acids, alkalis, and salt spray, suitable for outdoor and industrial applications.

   Aging resistance: does not deform, discolor, or degrade due to prolonged use; its lifespan far exceeds that of plastic lamp holders.

   Moisture resistance: does not absorb moisture, maintaining stable insulation in high-humidity environments such as bathrooms and kitchens.

Product Specifications

Applications

Product lines and customization services

Customized Services

1. Non-standard structural design: We provide drawings and rapid prototyping based on customer's lighting fixture structural requirements.
2. Material grade customization: 95%, 99%, and 99.5% alumina purity options available.
3. Metal insert integration: high-temperature bonding technology between ceramic and metal ensures both electrical conductivity and mechanical strength.
4. Surface treatment: polishing, glazing, metallization, and other processes to meet specific optical and electrical requirements.

Production Process and Quality Control

1.Manufacturing Flow

   Raw material preparation: screening and proportioning of high-purity alumina powder

   Forming and processing: isostatic pressing (CIP) or dry pressing to ensure uniform density

   High-temperature sintering: sintering at 1600–1700℃ to obtain a dense ceramic body

   Precision machining: CNC lathe and grinding to meet drawing accuracy requirements

   Quality inspection: dimensional inspection, insulation testing, thermal cycling testing, and visual inspection

   Surface treatment: polishing, glazing, or metallization as needed

2.Quality Certifications

   ISO 9001: Quality Management System Certification

   RoHS/REACH: Green Environmental Standard, Free of Hazardous Substances

   CE Certification: Compliant with EU Safety Standards

Advantages Compared to Traditional Materials

Purchasing Guide

How to Choose the Right Alumina Ceramic Lamp Holder?

1. Confirm alumina purity: 95% is sufficient for general lighting; 99% or 99.5% is recommended for high-power, high-frequency, and medical-grade applications.
2. Assess operating temperature: choose a 200℃ temperature-resistant type for standard LED lighting; choose a 1200℃ high-temperature type for industrial environments.
3. Check dimensional accuracy: batch assembly requires errors controlled within ±0.01mm.
4. Pay attention to surface quality: high-gloss finishes prevent arcing and improve insulation performance.
5. Verify certifications: ensure the supplier possesses ISO9001, RoHS, CE, and other certifications.
6. Assess customization capabilities: reputable manufacturers should be able to provide engineering support such as thermal design, electrical performance evaluation, and structural simulation.

Our workshop

Why choose us?

1.Customized R&D, rather than standard product adaptation

2.Deep control of materials science：Material Selection Based on Needs，Microstructure Optimization，Batch Consistency

3.Precision machining capability：Flatness can reach 0.001mm, parallelism 0.002mm, and roughness Ra 0.1μm.

FAQ

Q1: What products does your company offer?

We specialize in high-performance ceramics such as alumina and silicon nitride, providing insulators, structural components, wear-resistant parts, and customized solutions.

Q2: Can you customize non-standard parts?

Yes. We support processing based on provided drawings and collaborative technical development, offering a full-process service from design to mass production.

Q3: What about accuracy and delivery time?

Standard tolerance ±0.05mm, precision grade ±0.01mm; samples 7-15 days, bulk orders 20-30 days.

Q4: Main application areas?

Power, electronics, machinery, chemical, and aerospace industries.

Q5: Quality assurance measures?

Full-process quality inspection, providing material reports and performance test data, supporting third-party certification and testing.

Q6: Do you provide technical support?

We provide professional support such as material selection consultation, design optimization, and failure analysis.
