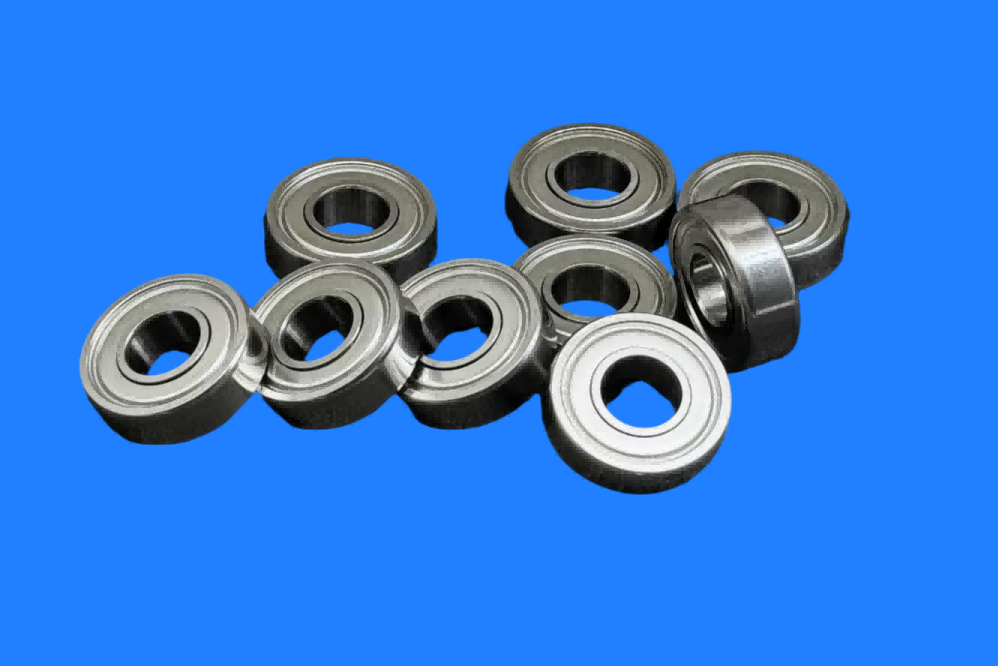

High Abrasion Resistance Skateboard Ceramic Bearings

High Abrasion Resistance Skateboard Ceramic Bearings

Product Description

Si₃N₄ Skateboard Ceramic Bearings represent the high-end development direction of skateboard bearing technology. Their lightweight, low-friction, long-life, and maintenance-free characteristics perfectly match the skateboarding sport's dual pursuit of speed and durability. Although the initial investment is higher than traditional steel bearings, considering their 3-10 times longer lifespan and superior performance, they are undoubtedly a worthwhile upgrade option for skateboarders seeking the ultimate riding experience.

As manufacturing processes mature and costs gradually decrease, silicon nitride ceramic bearings will undoubtedly find wider application in the skateboarding field, driving this extreme sport towards higher speeds and longer ride lengths.

Product Specifications

1. Structure: Deep groove ball bearing; rolling elements are high-purity silicon nitride (Si₃N₄) ceramic balls; inner and outer rings can be stainless steel or ceramic.
2. Material Composition: rolling elements: Si₃N₄ (purity ≥99%); Cage: Nylon/PEEK/Brass; Seals: Fluororubber/Nitrile rubber
3. Size Range: primarily miniature sizes, such as 608 (inner diameter 8mm, outer diameter 22mm, width 7mm), 625, 688, etc., tolerance grades P6/P4.
4. Precision Grade: ABEC-7/ABEC-9, some high-end models reach ABEC-11, meeting high-speed rotation requirements.
5. Sealing Type: open type/2RS double-sided adhesive seal/2Z metal cap, adaptable to different dustproof and waterproof requirements.

Material Properties and Core Advantages

1. Ultra-Lightweight Design

    Silicon nitride ceramic has a density of only 3.2 g/cm³, approximately 40% of that of bearing steel (7.8 g/cm³). This lightweight characteristic significantly reduces centrifugal force during high-speed rotation, allowing skaters to achieve faster starting speeds and longer-lasting gliding inertia.

2. Extremely Low Coefficient of Friction

    The surface smoothness of silicon nitride ceramic balls is approximately 65% ​​smoother than that of steel balls, and the coefficient of friction is only about 30% of that of steel. This means:

    Significantly reduced gliding resistance

    Reduced heat generation and extended grease life

    Allowable "dry running" (oil-free lubrication)

3. Ultra-High Hardness and Wear Resistance

    Silicon nitride has a Vickers hardness of 15-16 GPa (approximately 75-80 HRC), far exceeding the 750 HV (approximately 58-64 HRC) of bearing steel. This ultra-high hardness allows bearing life to be 3-10 times that of steel bearings, significantly reducing replacement frequency.

4. Excellent Corrosion Resistance

    Silicon nitride exhibits excellent chemical stability against most acids, alkalis, and moisture, and will not rust, making it suitable for use in rainy or humid environments. In contrast, traditional steel bearings are highly susceptible to oxidation and failure when exposed to water.

5. Wide Temperature Range Operation

    Silicon nitride ceramics maintain stable performance within a temperature range of -100°C to +1200°C, fully covering the environmental temperature requirements of skateboarding.

Product Classification and Structural Form

Performance comparison with traditional steel bearings

Specific Application Advantages in Skateboarding

1.  Speed ​​Performance: Due to reduced centrifugal force and friction, skateboards equipped with silicon nitride bearings can achieve higher top speeds, making them particularly suitable for downhill and longboarding.
2. Smoothness of Movement: The self-lubricating properties of the ceramic balls make the bearings run more smoothly and quietly, resulting in more responsive and controllable wheel rotation during freestyle and street tricks.
3.  Environmental Adaptability:

          Rainy weather: No worries about bearing rust.

          Dusty environments: The high-hardness surface is less prone to scratches from particles.

         Maintenance-free: Suitable for skaters who don't want to frequently maintain the bearings.

      4. Weight Optimization: The entire set of 8 bearings can reduce weight by approximately 30-40 grams. For professional skaters seeking extreme lightweight performance, this translates to better control and less physical exertion.

Precision Grades and Buying Guide

1.Precision Grades

ABEC Grades: ABEC-7, ABEC-9, ABEC-11 (Higher numbers indicate higher precision)

Ball Grades: G3, G5, G10, G16 (G3 is the highest precision; lower numbers indicate higher precision)

2.Buying Recommendations

Daily Recreational Skating: Hybrid ceramic bearings (high cost-performance ratio)

Professional Racing/Downhill: All-ceramic Si₃N₄ bearings (ultimate performance)

Flatland/Street Skiing: Consider hybrid ceramic bearings with sealed structures (dustproof and shockproof)

Maintenance and Care

1. While silicon nitride bearings are self-lubricating, proper maintenance can further extend their service life:
2. Regular Cleaning: Use a specialized bearing cleaner to remove dust and old grease.
3. Lubrication Selection: If lubrication is required, a low-viscosity synthetic grease is recommended.
4. Avoid Heavy Impacts: Although silicon nitride has good toughness among ceramics, severe impacts should still be avoided.

Why choose us?

1.Customized R&D, rather than standard product adaptation

2.Deep control of materials science：Material Selection Based on Needs，Microstructure Optimization，Batch Consistency

3.Precision machining capability：Flatness can reach 0.001mm, parallelism 0.002mm, and roughness Ra 0.1μm.

FAQ

Q1: What products does your company offer?

We specialize in high-performance ceramics such as alumina and silicon nitride, providing insulators, structural components, wear-resistant parts, and customized solutions.

Q2: Can you customize non-standard parts?

Yes. We support processing based on provided drawings and collaborative technical development, offering a full-process service from design to mass production.

Q3: What about accuracy and delivery time?

Standard tolerance ±0.05mm, precision grade ±0.01mm; samples 7-15 days, bulk orders 20-30 days.

Q4: Main application areas?

Power, electronics, machinery, chemical, and aerospace industries.

Q5: Quality assurance measures?

Full-process quality inspection, providing material reports and performance test data, supporting third-party certification and testing.

Q6: Do you provide technical support?

We provide professional support such as material selection consultation, design optimization, and failure analysis.
